美國境內98%以上工業產品都可購買!歡迎詢價

?
ATOMUFFLER ALWITCO除霧器阻尼通流式高壓真空過濾空氣干燥消聲器
  • ATOMUFFLER ALWITCO除霧器阻尼通流式高壓真空過濾空氣干燥消聲器
  • ATOMUFFLER ALWITCO除霧器阻尼通流式高壓真空過濾空氣干燥消聲器
  • ATOMUFFLER ALWITCO除霧器阻尼通流式高壓真空過濾空氣干燥消聲器
  • ATOMUFFLER ALWITCO除霧器阻尼通流式高壓真空過濾空氣干燥消聲器
Loading...
ATOMUFFLER ALWITCO除霧器阻尼通流式高壓真空過濾空氣干燥消聲器


  • 品牌 : ATOMUFFLER ALWITCO除霧器阻尼通流式高壓真空過濾空氣干燥消聲器
  • 時間 : 2022.04.20






  • 產品介紹
  • 產品留言

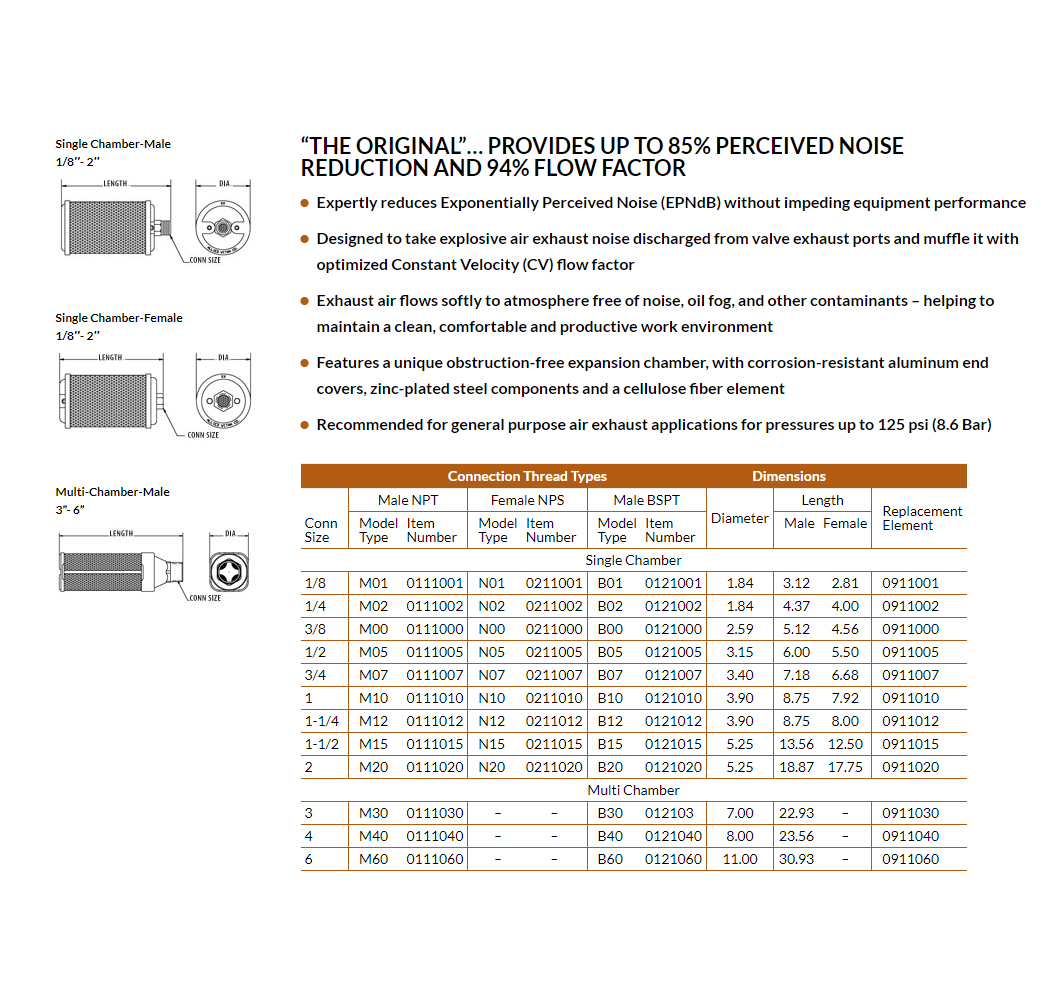

Single Chamber-Male
1/8″- 2″
Single Chamber-Female
1/8″- 2″
Multi-Chamber-Male
3”- 6”

“THE ORIGINAL”… PROVIDES UP TO 85% PERCEIVED NOISE REDUCTION AND 94% FLOW FACTOR

  • Expertly reduces Exponentially Perceived Noise (EPNdB) without impeding equipment performance

  • Designed to take explosive air exhaust noise discharged from valve exhaust ports and muffle it with optimized Constant Velocity (CV) flow factor

  • Exhaust air flows softly to atmosphere free of noise, oil fog, and other contaminants – helping to maintain a clean, comfortable and productive work environment

  • Features a unique obstruction-free expansion chamber, with corrosion-resistant aluminum end covers, zinc-plated steel components and a cellulose fiber element

  • Recommended for general purpose air exhaust applications for pressures up to 125 psi (8.6 Bar)


Connection Thread TypesDimensions
Conn
Size
Male NPTFemale NPSMale BSPTDiameterLengthReplacement
Element
Model
Type
Item
Number
Model
Type
Item
Number
Model
Type
Item
Number
MaleFemale
Single Chamber
1/8M010111001N010211001B0101210011.843.122.810911001
1/4M020111002N020211002B0201210021.844.374.000911002
3/8M000111000N000211000B0001210002.595.124.560911000
1/2M050111005N050211005B0501210053.156.005.500911005
3/4M070111007N070211007B0701210073.407.186.680911007
1M100111010N100211010B1001210103.908.757.920911010
1-1/4M120111012N120211012B1201210123.908.758.000911012
1-1/2M150111015N150211015B1501210155.2513.5612.500911015
2M200111020N200211020B2001210205.2518.8717.750911020
Multi Chamber
3M300111030B300121037.0022.930911030
4M400111040B4001210408.0023.560911040
6M600111060B60012106011.0030.930911060
